2D & 3D Drawing Validator
One Validator
Every Check Your Release Process Needs.
High-impact checks that catch engineering errors before they become rework, commissioning delays, or cost overruns. No change to how your team drafts, releases, or approves.
AI agents that review engineering documents like your most seasoned engineer
Before AI can flag a real issue, it needs to understand how engineering documents actually work. Conforge goes beyond generic OCR and image recognition: it's built on how experienced QA engineers review drawings, reconcile BOMs, handle change requests, and verify vendor documents, so it catches what a rushed review misses.

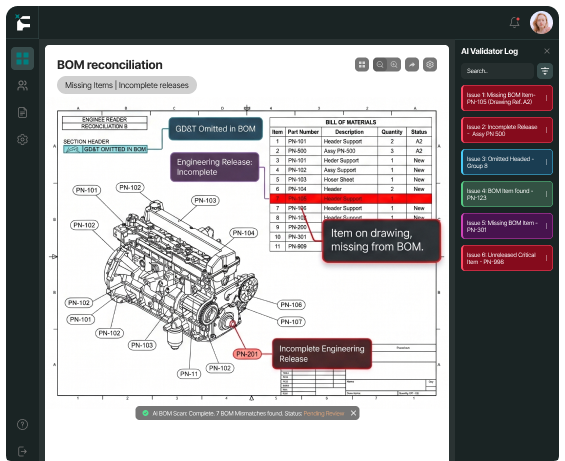

Every BOM checked against the released drawing
Conforge validates the bill of materials (BOM, the parts list) against released drawings, line by line. Missing equipment, omitted headers, unreleased critical items, and incomplete engineering releases all get flagged before release, not discovered at commissioning. Every mismatch is marked on the exact drawing and logged, so nothing ships with a component the BOM never captured.

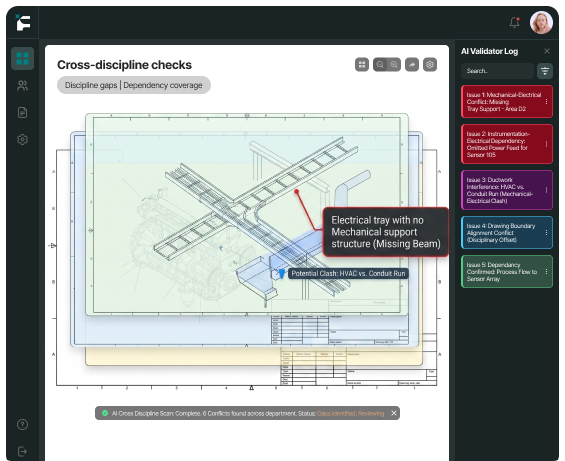

Mechanical, Electrical, and Instrumentation, checked against each other
Errors rarely live inside one discipline; they live in the gaps between them. Conforge verifies consistency across mechanical drawings, electrical designs, instrumentation, and cabling and supports, confirming every dependent component is covered somewhere. The "we assumed the other team had it" class of error gets caught before release, with each gap marked at the exact spot where the disciplines disagree.

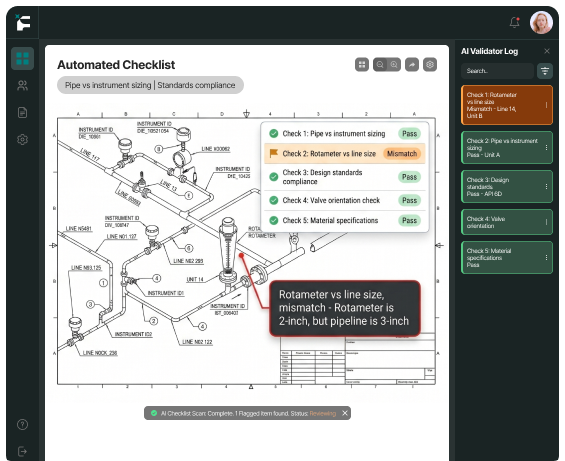

Your review checklist, run automatically on every drawing
The routine checks your engineers do by hand today, pipe sizes against instruments, rotameters against line sizes, your own design standards and checklists, run automatically on every drawing. Each check is logged with a pass or a flag at the exact location, so senior engineers spend their review time on judgment calls, not line sizes. Nothing gets released without a record of what was checked and by whom.

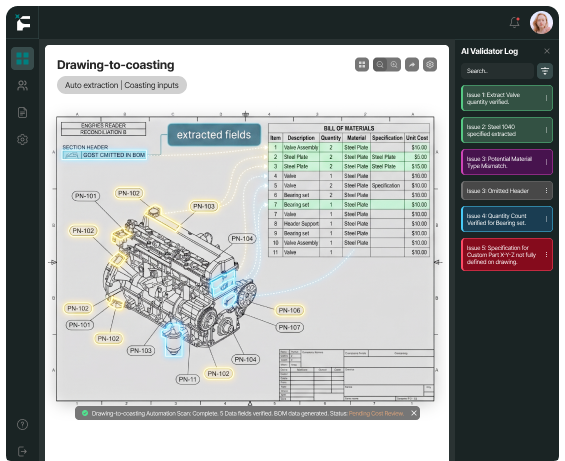

From drawing to costing input, without retyping
Conforge extracts quantities, materials, and specifications directly from engineering drawings and generates costing inputs and BOM-related data automatically. The manual takeoff step disappears, along with the transcription errors it introduces, so estimates go out faster and are built on exactly what the drawing says, not what someone retyped from it.

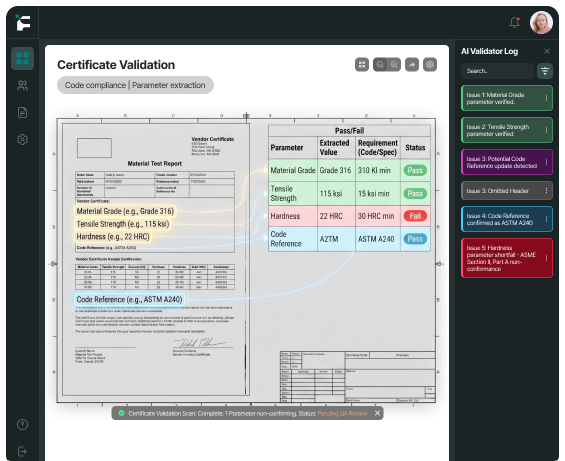

Vendor certificates read and verified against spec
Conforge reads vendor certificates and compliance documents automatically, extracts the parameters that matter, grades, test values, standards references, and validates them against applicable codes and your specifications. Any shortfall is flagged with the exact field and the code it fails against, so non-conforming material is caught at document review, not at inspection.
Try the solution on your own drawings
Request a live demo specific to your drawing template. Our expert will run a live session on your actual drawing for your team. No pitch deck. 100% secure.
Ready to Make Every Release Fully Traceable?
Block documents with unresolved issues, track every flag as a quality action, and keep a complete audit trail from review to release.
